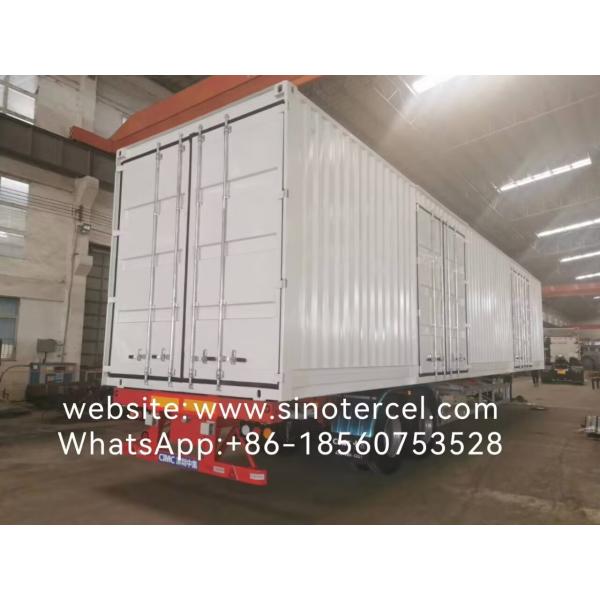

Box Semi Trailer
Product Description:
The car body is made of high-strength cold-rolled corrugated steel plate with no skeleton structure and reasonable distribution towards the body. X type pull pull, with DORA, heavy load, light weight characteristics, box top has closed, push pull open type, open type, open tarpaulin type, easy to operate, to meet the user diversification, personalized requirements.
The vehicle body is made of high quality steel, advanced technology and strict production process. The structure of the vehicle is reasonable, the performance is reliable, the operation is simple and the appearance is beautiful. Accessories are manufactured by well-known manufacturers at home and abroad, and purchased in strict accordance with the requirements of quality system documents.
Parameter:
|
Product Name
|
Cargo Transport Semi trailer
|
|
Manufacture
|
Shandong Liangshan Tongya Automobile Co.,Ltd
|
|
Weight
|
|
|
Tare Weight
|
7.75,7.63,7.51ton
|
|
Loading Capacity
|
28.5,28.62,28.74ton
|
|
Axle Weight Load
|
13/16ton
|
|
Specification
|
|
|
Axle No./ specs.
|
3
|
|
Wheel
|
11.00-20,12.00-20
|
|
King Pin
|
2.5" or 3.5" ,Jost brand
|
|
Outside Dimensions (L*W*H)
|
13000*2550*3900,3700,3500,3300MM
|
|
Inner Dimensions (L*W*H)
|
13000*2550*2400,2200,2000,1800MM
|
|
Support legs
|
28T,Tongya Da or Jost brand
|
|
Rim
|
8.0-20 Vacunnm zhengxing tire brand
|
|
Wheelbase
|
6880+1310+1310mm/6760+1310+1310mm
|
|
Steel Spring
|
10/10/10,13/13/13.
|
|
Frame:
|
|
|
Main beam
|
The height of the beam is450/500mm,upper plate is 14mm,down plate is 16mm,middle plate is 8mm.
But we can according to your requirement to do.
|
|
Platform plate
|
3mm-6mm diamond plat
|
|
Brake:
|
|
|
Brake
|
Kemi Brand of China
|
|
Brake Chamber
|
Four double and two single chamber( TKL brand )
|
|
Electriacl:
|
|
|
Voltage
|
24V
|
|
Receptacle
|
7ways (7wire harness)
|
|
Miscellaneous
|
|
|
Painting
|
According to the requirement of the buyer
|
|
Marking
|
According to the requirement of the buyer
|
|
Side Guard
|
According to the requirement of the buyer
|
|
Tools box
|
According to the requirement of the buyer
|
